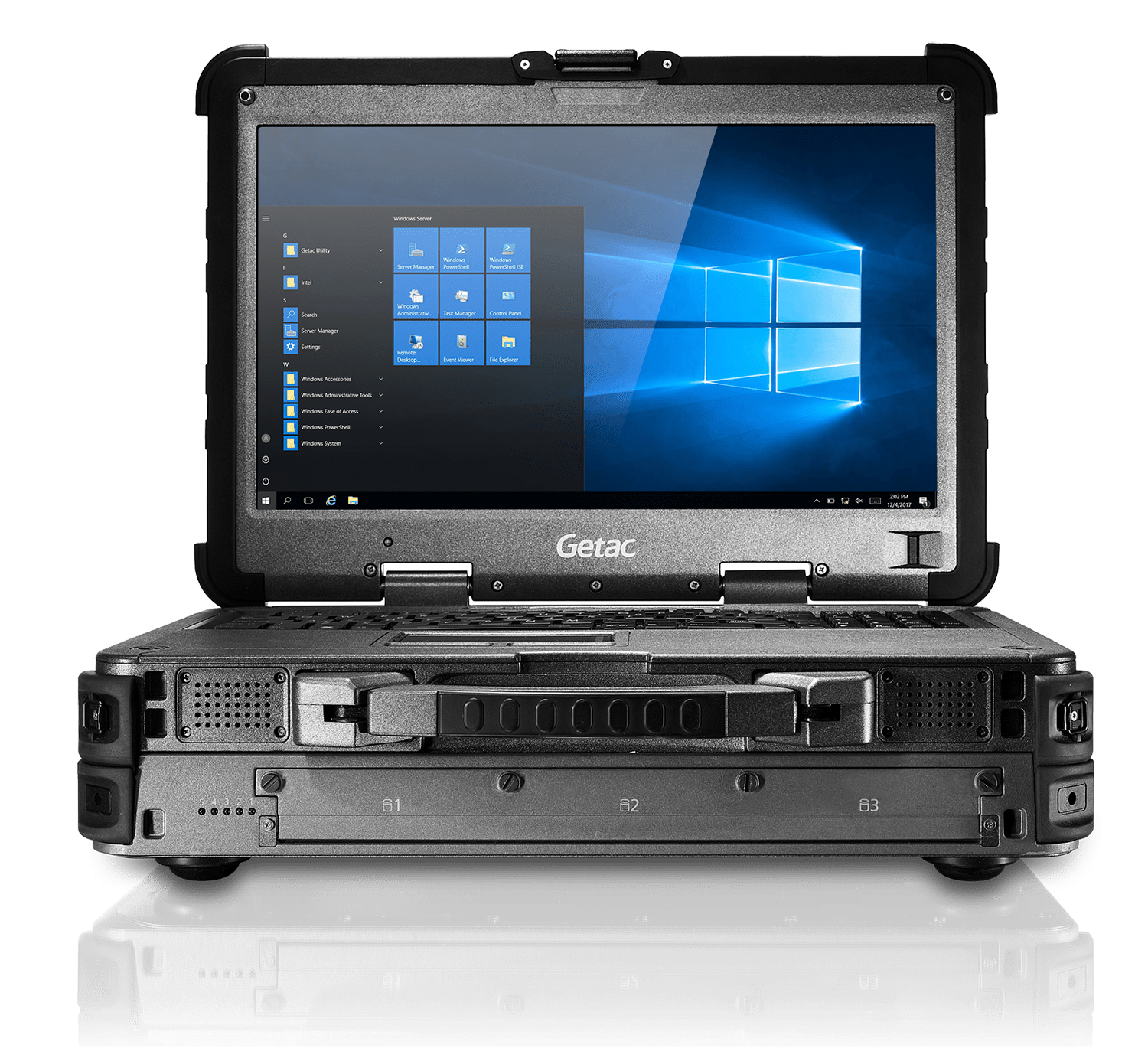

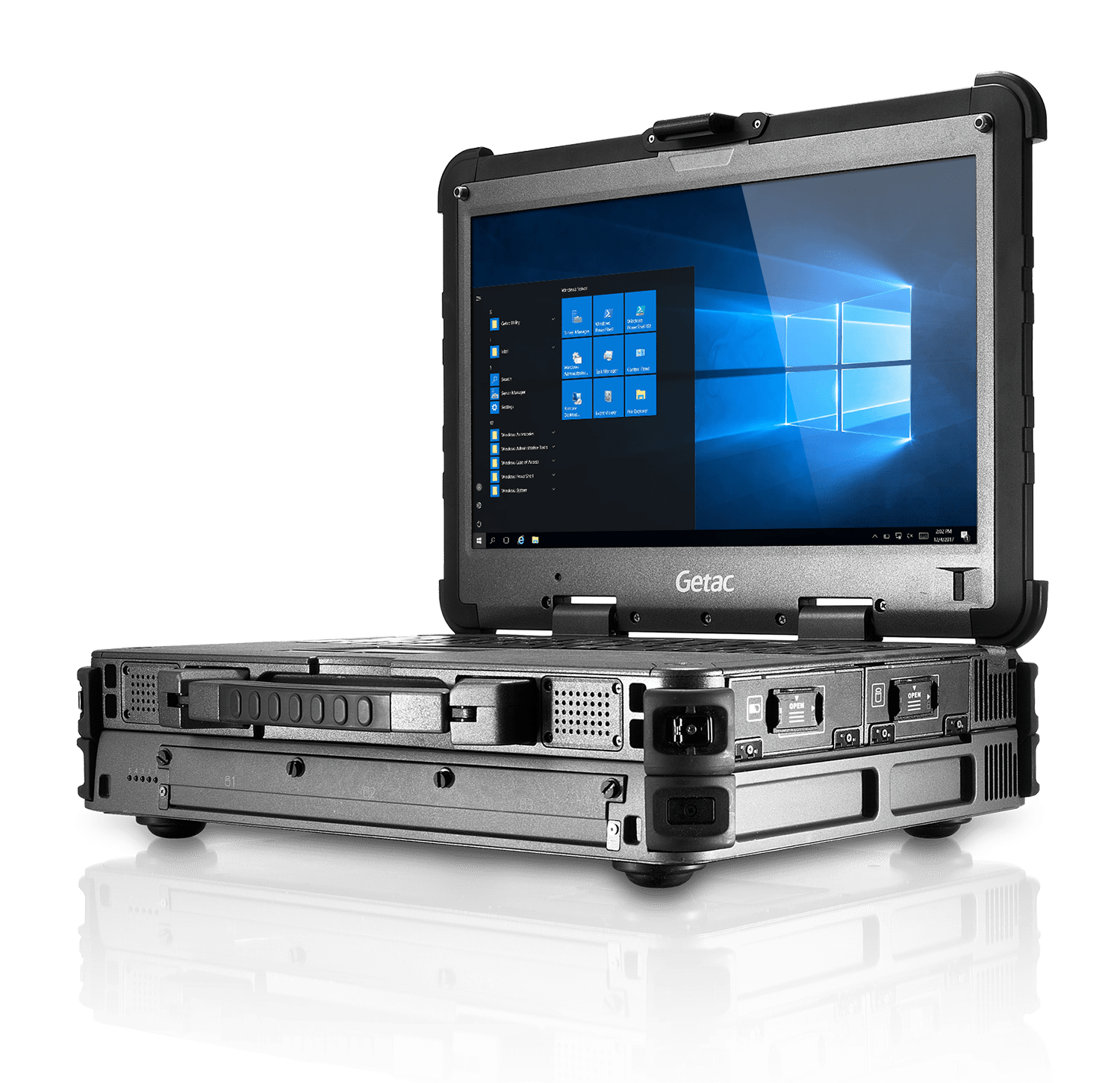

Getac X500 Server
The briefcase-size X500 rugged mobile server is a commercial off-the-shelf, high-performance mobile rugged server designed for quick deployment.
RUGGED RAID SERVER. NOTEBOOK PORTABILITY
Based on the X500 ultra rugged computer, the briefcase-size X500 Rugged Server is a commercial off-the-shelf (COTS), high-performance, mobile rugged server that provides quick deployment and can be easily transported into emergency, disaster and temporary set-up environments.

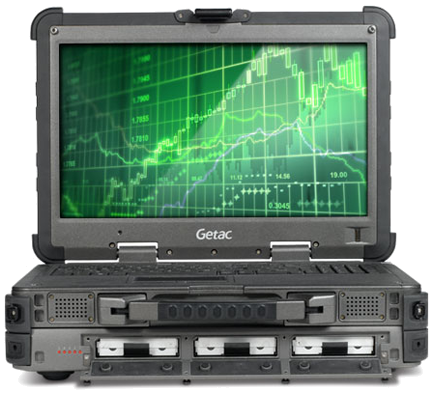

5TB of Storage / RAID 0, 1, 5
The X500 Rugged Server has a hardware RAID (redundant array of independent disks) controller that can improve performance and protect your data. With up to 5 terabytes of storage, the X500 Server can be configured for RAID level 0, 1, 5.
Windows Server 2019
The X500 Rugged Server is pre-loaded with Windows Server 2019 providing powerful and flexible server application management.
Quad-Core Processing
With a state-of-the-art 3.0GHz Intel® Xeon® quad core processor outfitted with 8MB Intel® Smart Cache and 32GB of RAM that is expandable up to 64GB of RAM, the X500 Rugged Server was built to handle the most complex processing tasks.
Compact and Mobile
At 16.1 x 11.4 x 4.6 inches in size, the X500 Rugged Server can be easily carried and deployed, maximizing uptime and efficiency. Self-contained, the X500 Server was designed to be brought to the front line and turned on with the same simplicity of a standard notebook.
Dual Ethernet Built-In.
Every X500 Server features dual Ethernet ports and independent Ethernet controllers allows clustering for high availability, load balancing and fault tolerance.
Large Sunlight-Readable HD Display
The X500 Rugged Server features a massive 15.6 inch Full HD 1080p widescreen display powered by an NVIDIA® GeForce® GTX1050 4GB discrete graphic controller delivering crystal-clear high def with incredible responsiveness.
Every X500 Rugged Server features an advanced QuadraClear® display. Getac’s QuadraClear solution reduces the sunlight’s reflectivity and provides a more effective contrast rate than other displays, while still maintaining the battery life you need in the field.
The QuadraClear display is powered by LEDs that provide an energy efficient display that is mercury-free, durable and consistent in brightness over time.
Built to Survive™
Only Getac manufacturers rugged computers down to the chassis. Built from high quality magnesium alloy, the X500 Rugged Server features four main casings specifically engineered to protect the computer against drops, shocks, spills, vibration and more. The sealed design of the X500 Rugged Server protects it against dust and moisture.
GETAC X500 SERVER FEATURES
Core Manufacturer
Getac is one of the largest manufacturers of magnesium alloy computer chassis in the world. Our expertise in manufacturing the housing itself provides key insight into how to make them stronger.
Sealed Ports and Doors
Sealed doors and ports provide an ingress protection against dust, moisture and water, allowing the X500 Rugged Server to be certified to an IP65 rating.
Industry’s Best 5-Year Warranty
Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our new Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee, supported by the best Pack & Collect logistics service in Europe, and rapid repair and return by Getac’s in-house experts.
That means you can depend on us to have your unit back in service within days.
Standard: 5 years Bumper-to-Bumper
– 8MB Intel® Smart Cache
NVIDIA® GeForce® GTX1050 4GB discrete graphic controller
Optional: NVIDIA® Quadro® P2000 4GB discrete graphic controller
Protection film
1000 nits QuadraClear® sunlight readable display
Optional: 64GB DDR4 / 64GB DDR4 ECC
Optional: 1TB SATA HDD
Optional: 1TB SATA SSD
Optional: 1TB / 2TB SATA SSD
Disk Management: RAID 0 / RAID 1
Optional LED backlit rubber keyboard
- Touchpad with two buttons
ExpressCard/54 x 1
PCMCIA Type II x 1
Without SD Card Reader starting March 5th, 2021
Optional 2nd storage: 1TB HDD / 512 GB SSD / 1TB / 2TB SSD
Optional 2nd battery: 10.8V, 9240mAh, 99.8Wh
X Bay
Optional: SATA HDD/SSD 3TB maximum expandable to 5TB
Disk management : RAID 0, RAID 1, RAID 5
*Software, hardware and accessories may vary depending on configuration.

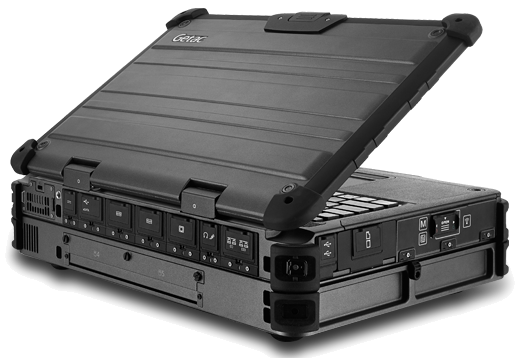

Audio output (Mini-jack) x 1
DC in Jack x 1
USB 3.2 Gen 1 Type-A x 4
LAN (RJ45) x 2
HDMI 1.4 x 1
External VGA (15-pin; D-sub) x 1
Serial port (9-pin; D-sub) x 2
Optional dedicated GPS
Kensington Lock
Intel® vPro™ Technology
Smart Card reader
Li-ion battery (10.8V, 9240mAh, 99.8Wh)
Optional: Multimedia bay 2nd Li-ion battery (10.8V, 9240mAh, 99.8Wh)
*Battery life testing conducted under MobileMark 2007. Battery performance will vary upon software applications, wireless settings, power management settings, LCD brightness, customized modules and environmental conditions. The battery has a limited number of charge cycles and may eventually need to be replaced by a Getac service provider. Battery life and charge cycles vary by use and settings.
**Software, hardware and accessories may vary depending on configuration.
5.2 kg (11.4 lbs)
410 x 320 x 119 mm (16.1″ x 12.6″ x 4.6″)
8.6 kg (18.9 lbs)
*Weight varies from configurations and optional accessories.
**Dimension measured with expansion unit.
IP65 certified
Vibration & drop resistant
Full magnesium alloy case
Shock-protected removable HDD
– Operating: -20°C to 55°C / -4°F to 131°F
– Storage: -40°C to 71°C / -40°F to 160°F
Humidity:
- 95% RH , non-condensing
*Tested by a national independent third party test lab following MIL-STD-810G. Recommend system boot-up temperature below 40°C.
Getac Geolocation
Adaptec Storage Manager
Optional: Absolute Persistence®
AC Adapter (150W, 100-240VAC)
Optional:
Backpack
Battery (10.8V, 9240mAh, 99.8Wh)
Multimedia Bay 2nd HDD
Multimedia bay 2nd battery (10.8V, 9240mAh, 99.8Wh)
Multi-bay Charger (Dual Bay)
AC Adapter (150W, 100-240VAC)
Office dock AC adapter (150W, 100-240VAC)
Protection Film
Spare SSD kit
* Software, hardware and accessories may vary depending on configuration.
That is why Getac has introduced accidental damage as standard under our new Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee.
That means you can depend on us to have your unit back in service within days.
Standard: 5 years Bumper-to-Bumper.
